Multifunction Automatic Horizontal Cartoning Machine
This machine is applicable for food and drug , Non food and drug cartoning packing , such as: Pharmacy,Baked goods, Face mask cosmetic, Auto spare parts etc. Automatic cartoning machine ZHX-100 incorporates carton opening, product pushing into carton ,date coding (Optional) all in one.
Share to:
Product Overview
Automatic cartoning machine ZHX-100 incorporates carton opening, product pushing into carton ,date coding (Optional) all in one. Well-formed, beautiful, works stably and reliably, high degree of automation, simple to operate and safety.

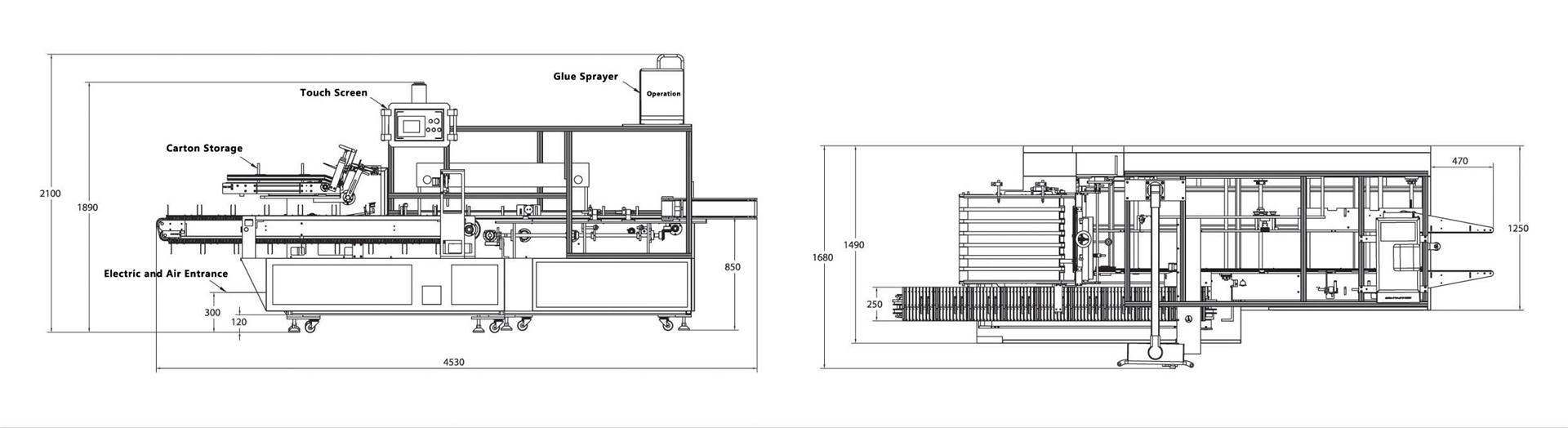

Instruction diagram:

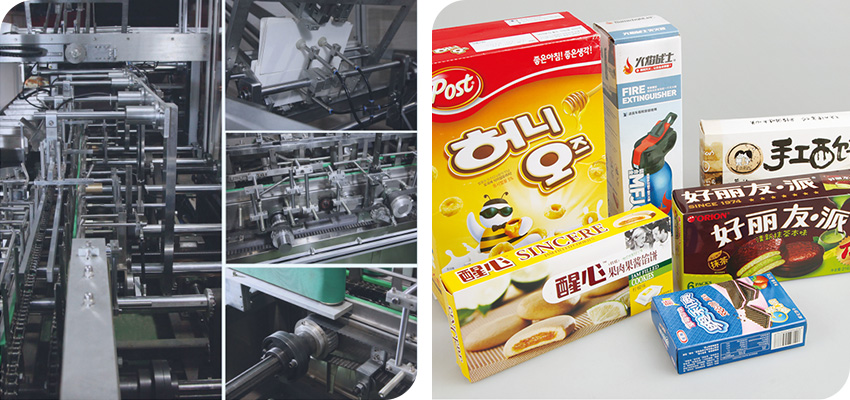

Detail image:
Characteristics
1. Adopt international famous PLC control system.
2. Physical design is concise and easy to understand.
3. Main-Driven have overload protection device.
4. Finishend product counted ,alarm and fault display.
5. Stable performance,easy to change differenet product specification.
Application
This machine is applicable for food and drug , Non food and drug cartoning packing , such as: Pharmacy,Baked goods, Face mask cosmetic, Auto spare parts etc.
Technical Parameter
| Item | Specification |
| Paper Requirement | 300-450g/m² |
| Max. Carton Specification | L(120-500)*W(30-245)*H(20-200)mm |
| Packing Speed | 60-100box/min |
| Hot Melt Machine Power | 4.8KW |
| Motor Power | 2.2KW |
| Toeal Power | 8.5KW |
| Power Supply | Ac380V 50Hz |
| Air Supply | Pressure 0.5-0.8Mpa |
| Air Consumption 140-180L/min | |
| Overall Dimensions | Main Machine L4600*W1700*H2000mm |
| Gross Weight | 2000Kg |
